SepQuant dropletProbe™️ Features Overview

Developed in conjunction with Oak Ridge National Laboratory, the SepQuant dropletProbe allows liquid surface extraction of analytes on surfaces and further analysis in an HPLC-MS detector.  The technique allows a powerful alternative to Quantitative Whole Body Autoradiography (QWBA) and maximises the use of advanced mass spectrometry platforms for analytes detection.

Screenshot 2017-06-04 07.50.53.png

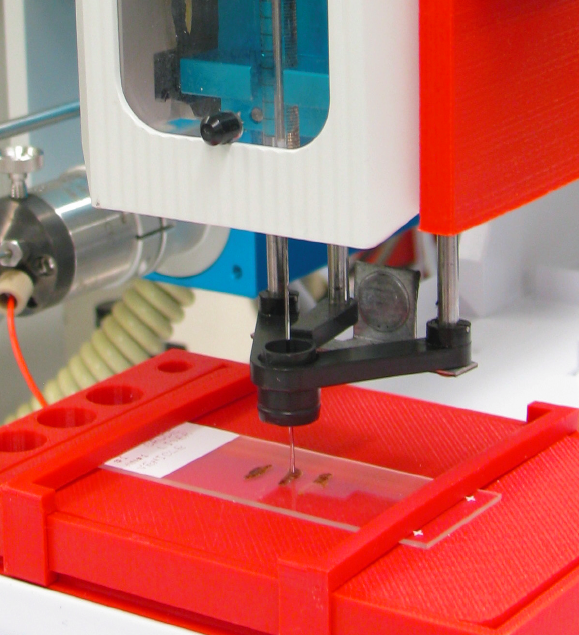

easy-t0-use software interface

First, the surface sample to be analyzed is mounted in a custom
sample tray. Then an optical image of the mounted sample is acquired
using a flatbed scanner controlled with the DropletProbe Premium©
software developed at the Oak Ridge National Laboratory

Screenshot 2017-06-04 07.51.02.png

automated z-distance calculation

Schematic of the surface sampling process including (a)
determining syringe-to-surface distance, (b) the positioning of the
syringe needle 100-300 μm above a defined surface spot, (c)
dispensing a discrete volume of extraction solvent onto a surface
creating a liquid junction between the needle and the surface,
(d) dissolution of the analyte in the extraction solvent, e) the liquid
is drawn back into the syringe needle after a predefined extraction
time, and (f) loaded into the sample loop followed by (g) injection for
a consecutive HPLC-MS/MS analysis. Steps (c)-(e) may be repeated
to improve extraction efficiency.

Screenshot 2017-06-04 07.51.14.png

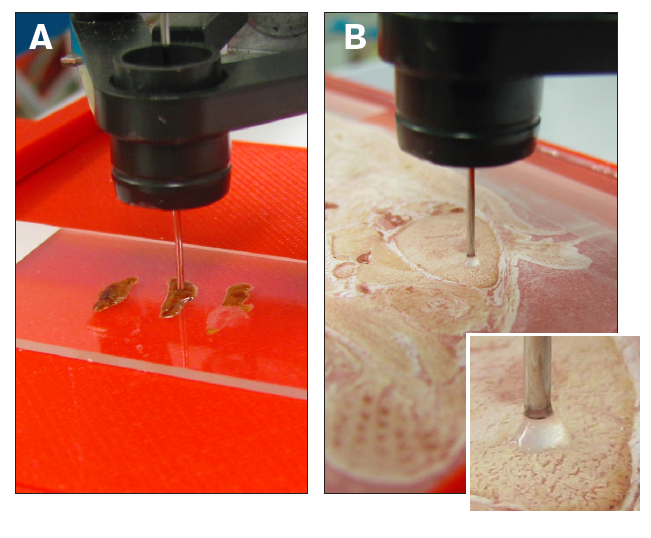

liquid microjunction

Extraction liquid dispensed by the needle in locked position
on (a) a tissue biopsy sample and on (b) a brain thin tissue section.
Zoomed in view in inset in (b) shows of liquid microjunction between
the tip of the needle and the sample.

Download the SepQuant dropletProbe Brochure or view some of our Application Notes to learn more!
